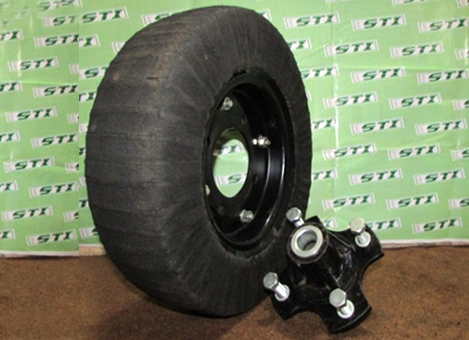

Part No.	Item Name	Tire Size	Rim Holes	Outer Dia	Width	Weight

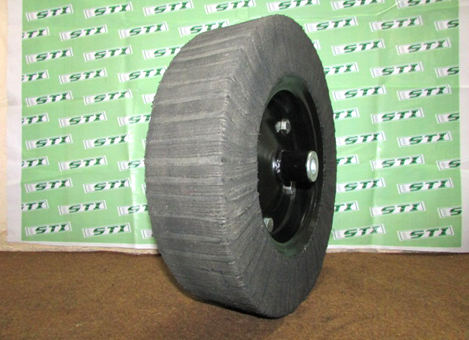

STI-6X94	Tail Wheel 6x9x21" 4 Bolts	6x9	4	21" ± ¼	5.5" ± ¼	72 LBS
STI-6X95	Tail Wheel 6x9x21" 5 Bolts	6x9	5	21" ± ¼	5.5" ± ¼	72 LBS

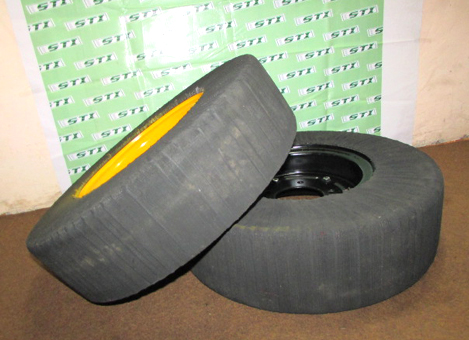

STI-4X8	Tail Wheel 4x8x15"	4x8	4	15" ± ¼	4" ± ¼	24 LBS
STI-4X8 ECO	Tail Wheel 4x8x15"	4x8	4	14-½	3-½	20 LBS
STI-5X8	Tail Wheel 5x8x15"	5x8	4	15" ± ¼	5" ± ¼	29 LBS
STI-BW	Barrow Wheel 4x8x15" W/Inbult Hub	4x8	4	15" ± ¼	4" ± ¼	25 LBS
Note :	Available in all kind of Sizes and Colors
	Flat Free (Not for Highway use)
Use In :	Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

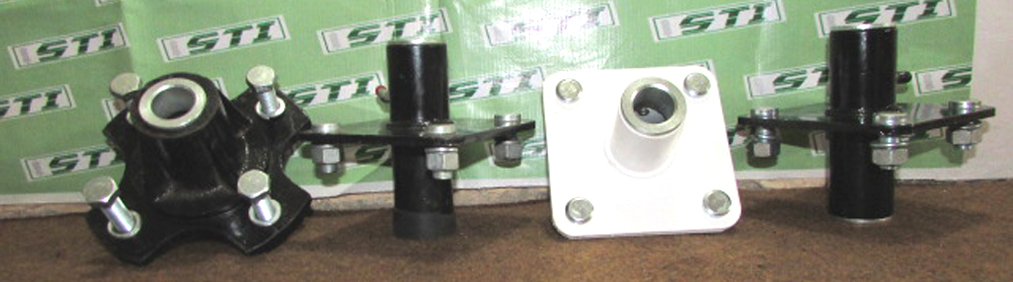

STI-CHB100 - STI-CHB75 - STI-FH6100 - STI-FH675

Part No.	Item Name	Bore	Type	Bolt Patten	Grease Nipple	Weight
STI-CHB100	Cast Iron Hub with Bushing 1"	1"	Cast Iron	(4) 1/2" On 5"	90	6 LBS
STI-CHTB75	Cast Iron Hub with Bushing 1"	3/4"	Cast Iron	(4) 1/2" On 5"	90	6 LBS
STI-FH6100	Fabricated Hub 6mm Bushing 1"	1"	Fabricated	(4) 1/2" On 5"	L-Type	3 LBS
STI-FH675	Fabricated Hub 6mm Bushing 3/4"	3/4"	Fabricated	(4) 1/2" On 5"	L-Type	3 LBS
Fits :	Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)
Note :	Available in all kind of Sizes and Colors
Use In :	Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

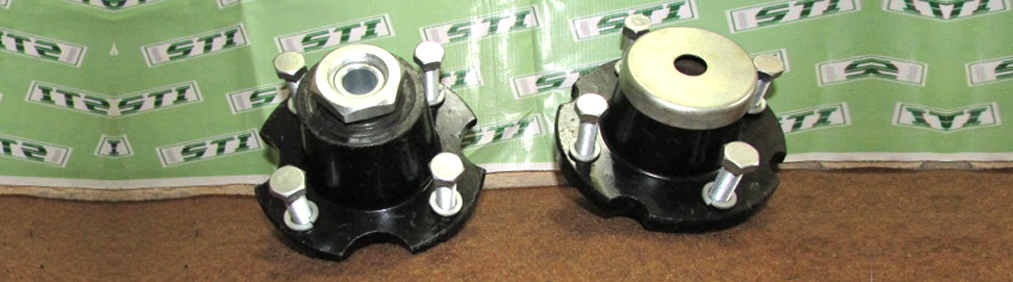

Part No.	Item Name	Bore	Type	Bolt Patten	Grease Nipple	Weight
STI-CHTB100	Cast Iron Hub with Tapper Bearing 1"	1"	Cast Iron	(4) 1/2" On 5"	90	11 LBS
STI-CHTB75	Cast Iron Hub with Tapper Bearing 3/4"	3/4"	Cast Iron	(4) 1/2" On 5"	90	11 LBS
STI-CHTBDC100	Cast Iron Hub with Tapper Bearing 1" Dust Cap	1"	Cast Iron	(4) 1/2" On 5"	90	10 LBS
STI-CHTBDC75	Cast Iron Hub with Tapper Bearing 3/4" Dust Cap	3/4"	Cast Iron	(4) 1/2" On 5"	90	10 LBS
Fits :	Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)
Note :	Available in all kind of Sizes and Colors
Use In :	Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

Part No.

Item Name

Bore

Type

Bolt Patten

Grease Nipple

Weight

STI-CHTB100

Cast Iron Hub with Tapper Bearing 1"

Cast Iron

(4) 1/2" On 5"

11 LBS

STI-CHTB75

Cast Iron Hub with Tapper Bearing 3/4"

3/4"

Cast Iron

(4) 1/2" On 5"

11 LBS

STI-CHTBDC100

Cast Iron Hub with Tapper Bearing 1" Dust Cap

Cast Iron

(4) 1/2" On 5"

10 LBS

STI-CHTBDC75

Cast Iron Hub with Tapper Bearing 3/4" Dust Cap

3/4"

Cast Iron

(4) 1/2" On 5"

10 LBS

Fits :

Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)

Note :

Available in all kind of Sizes and Colors

Use In :

Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

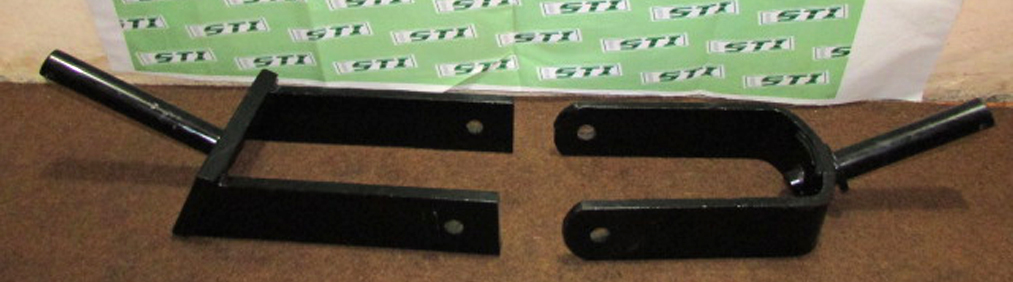

Part No.	Item Name	Yoke	Bolt Axle Hole	Fork Internal Width	Weight
STI-FHD150100	Tail Wheel Fork Heavy Duty 1.50" Yoke Axle Hole 1"	1.50"	1"	5.50"	22 LBS
STI-FHD15075	Tail Wheel Fork Heavy Duty 1.50" Yoke Axle Hole 3/4"	1.50"	3/4"	5.50"	22 LBS
STI-FHD125100	Tail Wheel Fork Heavy Duty 1.25" Yoke Axle Hole 1"	1.25"	1"	5.50"	20 LBS
STI-FHD12575	Tail Wheel Fork Heavy Duty 1.25" Yoke Axle Hole 3/4"	1.25"	3/4"	5.50"	20 LBS
STI-TWF125100	Tail Wheel Fork 1.25" Yoke Axle Hole 1"	1.25"	1"	5.50"	13 LBS
STI-TWF12575	Tail Wheel Fork 1.25" Yoke Axle Hole 3/4"	1.25"	3/4"	5.50"	13 LBS
Fits :	Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)
Note :	Available in all kind of Sizes and Colors
Use In :	Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

Part No.

Item Name

Yoke

Bolt Axle Hole

Fork Internal Width

Weight

STI-FHD150100

Tail Wheel Fork Heavy Duty 1.50" Yoke Axle Hole 1"

1.50"

5.50"

22 LBS

STI-FHD15075

Tail Wheel Fork Heavy Duty 1.50" Yoke Axle Hole 3/4"

1.50"

3/4"

5.50"

22 LBS

STI-FHD125100

Tail Wheel Fork Heavy Duty 1.25" Yoke Axle Hole 1"

1.25"

5.50"

20 LBS

STI-FHD12575

Tail Wheel Fork Heavy Duty 1.25" Yoke Axle Hole 3/4"

1.25"

3/4"

5.50"

20 LBS

STI-TWF125100

Tail Wheel Fork 1.25" Yoke Axle Hole 1"

1.25"

5.50"

13 LBS

STI-TWF12575

Tail Wheel Fork 1.25" Yoke Axle Hole 3/4"

1.25"

3/4"

5.50"

13 LBS

Fits :

Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)

Note :

Available in all kind of Sizes and Colors

Use In :

Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

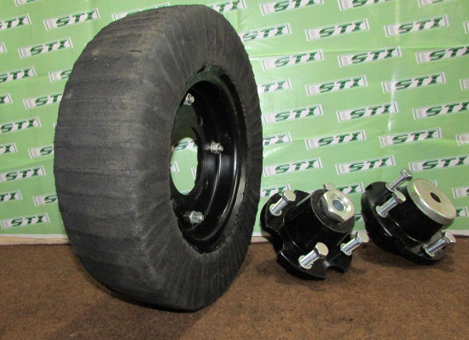

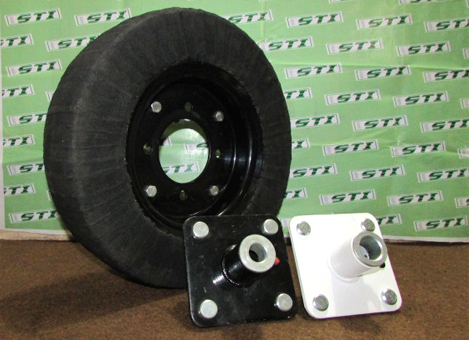

Part No.	Item Name	Tire O.D	Tire Width	Bolt Patten	Weight
STI-TW48FH610	4x8 Tail Wheel with Fabriacted Hub 6mm Bushing 1"	14-3/4"	3-3/4"	(4) 1/2" On 5"	25 LBS
STI-TW48FH675	4x8 Tail Wheel with Fabriacted Hub 6mm Bushing 3/4"	14-3/4"	3-3/4"	(4) 1/2" On 5"	25 LBS
STI-TW48CHTB75	4x8 Tail Wheel with Cast Iron Hub Bushing 3/4"	14-3/4"	3-3/4"	(4) 1/2" On 5"	26 LBS
STI-TW48CHB100	4x8 Tail Wheel with Cast Iron Hub Tapper Bearing 1"	14-3/4"	3-3/4"	(4) 1/2" On 5"	26 LBS
STI-TW48CHB75	4x8 Tail Wheel with Cast Iron Hub Tapper Bearing 3/4"	14-3/4"	3-3/4"	(4) 1/2" On 5"	33 LBS
Fits :	Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)
Note :	Available in all kind of Sizes and Colors
Use In :	Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

Part No.

Item Name

Tire O.D

Tire Width

Bolt Patten

Weight

STI-TW48FH610

4x8 Tail Wheel with Fabriacted Hub 6mm Bushing 1"

14-3/4"

3-3/4"

(4) 1/2" On 5"

25 LBS

STI-TW48FH675

4x8 Tail Wheel with Fabriacted Hub 6mm Bushing 3/4"

14-3/4"

3-3/4"

(4) 1/2" On 5"

25 LBS

STI-TW48CHTB75

4x8 Tail Wheel with Cast Iron Hub Bushing 3/4"

14-3/4"

3-3/4"

(4) 1/2" On 5"

26 LBS

STI-TW48CHB100

4x8 Tail Wheel with Cast Iron Hub Tapper Bearing 1"

14-3/4"

3-3/4"

(4) 1/2" On 5"

26 LBS

STI-TW48CHB75

4x8 Tail Wheel with Cast Iron Hub Tapper Bearing 3/4"

14-3/4"

3-3/4"

(4) 1/2" On 5"

33 LBS

Fits :

Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)

Note :

Available in all kind of Sizes and Colors

Use In :

Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

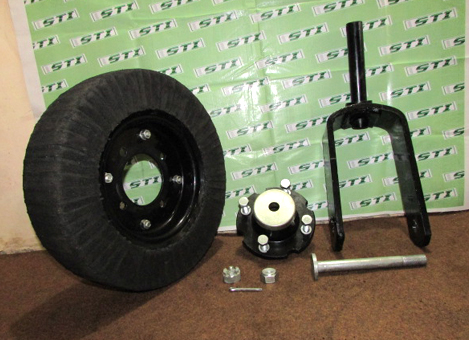

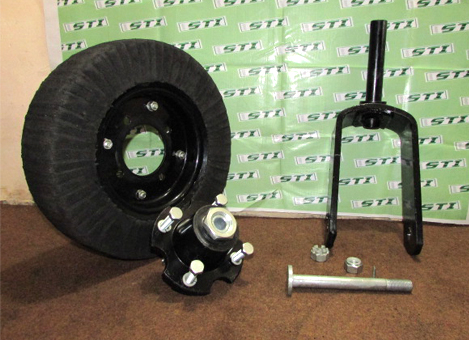

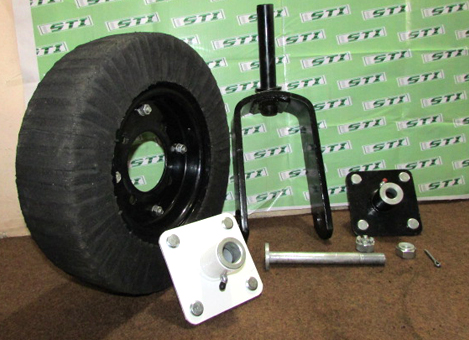

Part No.	Item Name	Tire O.D	Tire Width	Bolt Patten	Weight
STI-48FAFH125100	4x8 Tail Wheel Assembly Fabricated Hub 6mm Bushing 1" Yoke 1.125"	14-3/4"	STI-FH6100	(4) 1/2" On 5"	33 LBS
STI-48FAFH125175	4x8 Tail Wheel Assembly Fabricated Hub 6mm Bushing 3/4" Yoke 1.125"	1.25"	STI-FH675	(4) 1/2" On 5"	42 LBS
STI-48FACHB125100	4x8 Tail Wheel Assembly Cast Iron Hub Bushing 1" Yoke 1.125"	1.25"	STI-CHB100	(4) 1/2" On 5"	42 LBS
STI-48FACHB12575	4x8 Tail Wheel Assembly Cast Iron Hub Bushing 3/4" Yoke 1.125"	1.25"	STI-CHB75	(4) 1/2" On 5"	46 LBS
Fits :	Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)
Note :	Available in all kind of Sizes and Colors.
Use In :	Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

Part No.

Item Name

Tire O.D

Tire Width

Bolt Patten

Weight

STI-48FAFH125100

4x8 Tail Wheel Assembly Fabricated Hub 6mm Bushing 1" Yoke 1.125"

14-3/4"

STI-FH6100

(4) 1/2" On 5"

33 LBS

STI-48FAFH125175

4x8 Tail Wheel Assembly Fabricated Hub 6mm Bushing 3/4" Yoke 1.125"

1.25"

STI-FH675

(4) 1/2" On 5"

42 LBS

STI-48FACHB125100

4x8 Tail Wheel Assembly Cast Iron Hub Bushing 1" Yoke 1.125"

1.25"

STI-CHB100

(4) 1/2" On 5"

42 LBS

STI-48FACHB12575

4x8 Tail Wheel Assembly Cast Iron Hub Bushing 3/4" Yoke 1.125"

1.25"

STI-CHB75

(4) 1/2" On 5"

46 LBS

Fits :

Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)

Note :

Available in all kind of Sizes and Colors.

Use In :

Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

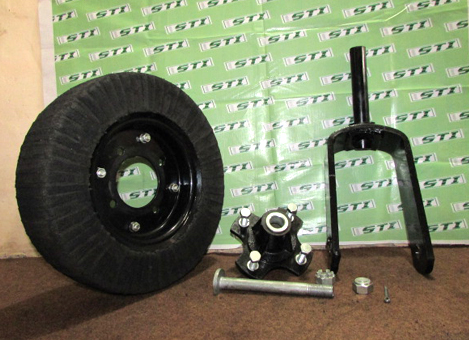

Part No.	Item Name	Yoke Dia	Hub	Bolt Patten	Weight
STI-48FACHTB125100	4x8 Tail Wheel Assembly Cast Iron Hub Bushing 3/4" Yoke 1.125"	1.25"	STI-CHTB100	(4) 1/2" On 5"	46 LBS
STI-48FACHTB12575	4x8 Tail Wheel Assembly Cast Iron Hub Tapper Bearing 1" Yoke 1.125"	1.25"	STI-CHTB75	(4) 1/2" On 5"	46 LBS
STI-48FACHBD12575	4x8 Tail Wheel Assembly Cast Iron Hub Bushing 3/4" Yoke 1.125"	1.25"	STI-CHTBDC100	(4) 1/2" On 5"	46 LBS
STI-48FACHTBD125100	4x8 Tail Wheel Assembly Cast Iron Hub Tapper Bearing 1" Yoke 1.125"	1.25"	STI-CHTBDC75	(4) 1/2" On 5"	46 LBS
Fits :	Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)
Use In :	Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

Part No.

Item Name

Yoke Dia

Hub

Bolt Patten

Weight

STI-48FACHTB125100

4x8 Tail Wheel Assembly Cast Iron Hub Bushing 3/4" Yoke 1.125"

1.25"

STI-CHTB100

(4) 1/2" On 5"

46 LBS

STI-48FACHTB12575

4x8 Tail Wheel Assembly Cast Iron Hub Tapper Bearing 1" Yoke 1.125"

1.25"

STI-CHTB75

(4) 1/2" On 5"

46 LBS

STI-48FACHBD12575

4x8 Tail Wheel Assembly Cast Iron Hub Bushing 3/4" Yoke 1.125"

1.25"

STI-CHTBDC100

(4) 1/2" On 5"

46 LBS

STI-48FACHTBD125100

4x8 Tail Wheel Assembly Cast Iron Hub Tapper Bearing 1" Yoke 1.125"

1.25"

STI-CHTBDC75

(4) 1/2" On 5"

46 LBS

Fits :

Our STI-4x8, STI-4x8ECO and our STI-5x8 Tailwheel (Laminated Tire)

Use In :

Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

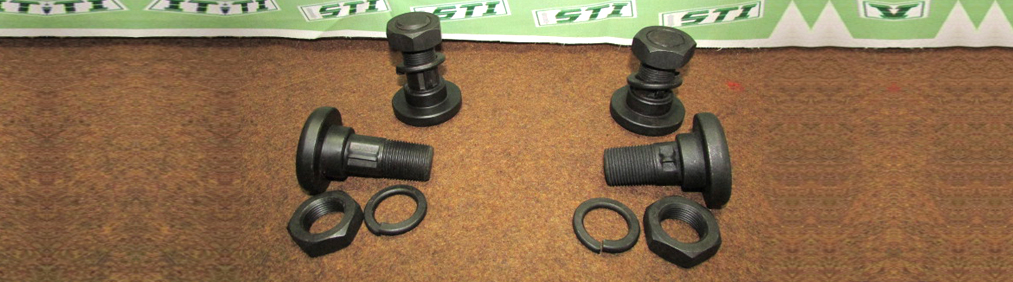

Part No.	Item Name	O.A Length	Thread	Shoulder Dia	Thickness	Weight
STI-BBK-SS	Blade Bolt Square Shoulder	3-1/2"	1-18" - 12 UNC	1-1/2"	1/2"	1.75LBS
STI-BBK-KL	Blade Bolt Kit with Keyway Long	3-1/2"	1-18" - 12 UNC	1-1/2"	1/2"	1.85LBS
STI-BBK-KS	Blade Bolt Kit with Keyway Small	2-1/2"	1-18" - 12 UNC	1-1/2"	1/2"	1.80LBS
Use In :	Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.

Part No.

Item Name

O.A Length

Thread

Shoulder Dia

Thickness

Weight

STI-BBK-SS

Blade Bolt Square Shoulder

3-1/2"

1-18" - 12 UNC

1-1/2"

1/2"

1.75LBS

STI-BBK-KL

Blade Bolt Kit with Keyway Long

3-1/2"

1-18" - 12 UNC

1-1/2"

1/2"

1.85LBS

STI-BBK-KS

Blade Bolt Kit with Keyway Small

2-1/2"

1-18" - 12 UNC

1-1/2"

1/2"

1.80LBS

Use In :

Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc.
